| Price | RM3.30 |
| Product SKU | 08-04-0-005-00 |
| Brand | OEM |
| Size (L x W x H) | 2 cm x 2 cm x 1 cm |
| Availability | 43 |
| Quantity |
|
Description
Highlight
- Model: HC-SR04
- Color: Blue + Silver
- Working voltage : 5V(DC)
- Static current: Less than 2mA.
- Output signal: Electric frequency signal, high level 5V, low level 0V.
- Sensor angle: Not more than 15 degrees.
- Detection distance: 2cm~450cm.
- High precision: Up to 3mm
[Overview]
This performance of the ultrasonic sensor distance measuring module is stable, measure the distance accurately. The module is with High precision, blind spots (3cm) super close. This module provides a full set of ranging process.
[Features]
- Model: HC-SR04
- Color: Blue + Silver
- Working voltage : 5V(DC)
- Static current: Less than 2mA.
- Output signal: Electric frequency signal, high level 5V, low level 0V.
- Sensor angle: Not more than 15 degrees.
- Detection distance: 2cm~450cm.
- High precision: Up to 3mm
- Mode of connection: VCC / trig(T) / echo(R) / GND
- Module Working Principle:
- Adopt IO trigger through supplying at least 10us sequence of high level signal
- The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal
- If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving
[Tutorial]

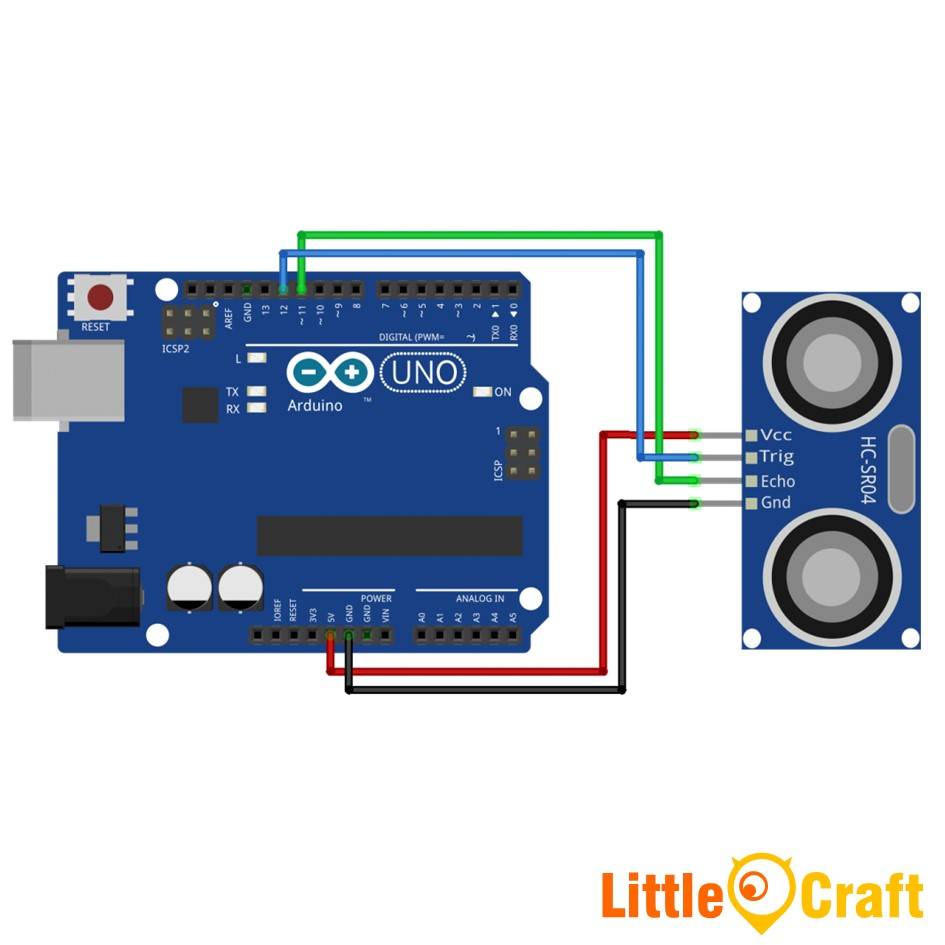

With UNO: http://www.instructables.com/id/Simple-Arduino-and-HC-SR04-Example/
Reviews (0)
view all
back
What's in the box
1x HC-SR04 Ultrasonic Sensor Distance Measuring Module
