| Price | RM25.90 |
| Product SKU | 08-0Z-0-022-00 |
| Brand | OEM |
| Size (L x W x H) | 100 mm x 50 mm x 10 mm |
| Availability | Out Of Stock |
Description
Highlight
- Fitness and sports heart rate monitoring
- Portable ECG
- Remote health monitor
- Game peripheral equipment
- Bioelectricity signal collection
[Package Includes]

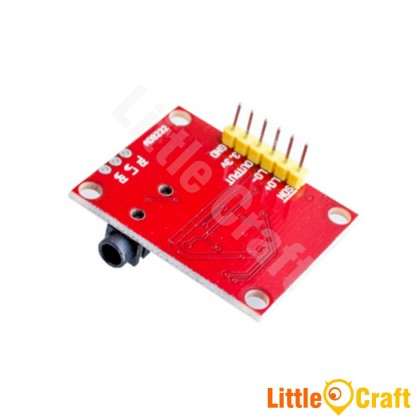

1x Pulse Heart Rate Sensor AD8232 Type B ECG Module Monitor Module
[Application]
- Fitness and sports heart rate monitoring
- Portable ECG
- Remote health monitor
- Game peripheral equipment
- Bioelectricity signal collection
[Specifications]
- AD8232 Adopts an operational amplifier that is without using constraint to build a three pole low pass filter, eliminating extra noises
- Rated Temp Range : 0 to 70degree
- Working Temp Range: -40 to 85degree
- The AD8232 Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart.
- This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading.
- ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily.
- The AD8232 is an integrated signal conditioning block for ECG and other biopotential measurement
- It is designed to extract, amplify, and filter small biopotential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.
- The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors to.
- SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an for Arduino or other development board.
- Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors.
- Additionally, there is an LED indicator light that will pulsate to the rhythm of a heart beat.
- Biomedical Sensor Pads and Sensor Cable are required to use the heart monitor and can be found in the Recommended Products section below.
- Weight: 25g
[Related Product]
All pulse heart rate sensor
S: https://shopee.com.my/search/?keyword=heart&shop=6674515
Reviews (0)
view all
back
What's in the box
1x Pulse Heart Rate Sensor AD8232 Type B ECG Module Monitor Module
