| Price | RM7.90 |
| Product SKU | 08-02-0-010-00 |
| Brand | OEM |
| Size (L x W x H) | 20 mm x 20 mm x 10 mm |
| Availability | 9 |
| Quantity |
|
Description
Highlight
- Tested board comes with a 20-20KHz electret microphone soldered on.
- Use the Maxim MAX4466, an op-amp specifically designed for this delicate task
- Has excellent power supply noise rejection, good amplifier sounds
- With Adjustable Gain Module is best used for projects such as voice changes
- Audio recording/sampling, and audio-reactive projects that use FFT.
- Rail-to-Rail Outputs
- Low 24µA Quiescent Supply Current
[Package Includes]

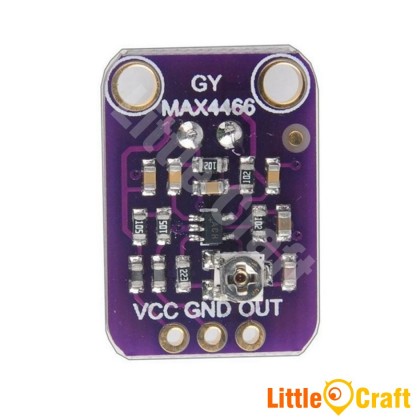

1x MAX4466 Microphone Amplifier Sound Sensor Module With Adjustable Gain Module Header Pin
[Specifications]
- Supply Voltage: +2.4V to +5.5V
- Excellent Power-Supply Rejection Ratio: 112dB
- Excellent Common-Mode Rejection Ratio: 126dB
- High AVOL: 125dB (RL = 100kΩ)
- Operating Temperature: -40°C to +85°C

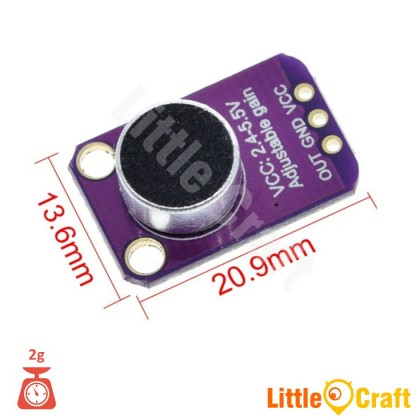

- Size: 14(L)x20(W)x9(H) mm
- Weight: 2g
[Highlight]
- The tested board comes with a 20-20KHz electret microphone soldered on.
- Use the Maxim MAX4466, an op-amp specifically designed for this delicate task
- Has excellent power supply noise rejection, good amplifier sounds
- With Adjustable Gain Module is best used for projects such as voice changes
- Audio recording/sampling, and audio-reactive projects that use FFT.
- Rail-to-Rail Outputs
- Low 24µA Quiescent Supply Current
[Related Product]
All type sound module
S: https://shopee.com.my/search?keyword=sound&shop=6674515
Reviews (0)
view all
back
What's in the box
1x MAX4466 Microphone Amplifier Sound Sensor Module With Adjustable Gain Module Header Pin
